L17S Laser Simulator Gun

    • Simulated the trigger wall and the small trigger

    • Same weight and size as the real handgun

    • Fit in universal magazine pouch

    • Energy saving design, power will be off if no use after 10 mins

    • Long standby time, max. 100,000 shots after fully charged

Contact us

  • Shirley Xie
  • E-mail:market@special314.com
  • Whatsapp:0086-13424425927
    Skype:shirelylovelife
...

Facebook

...

YouTube

...

Wechat

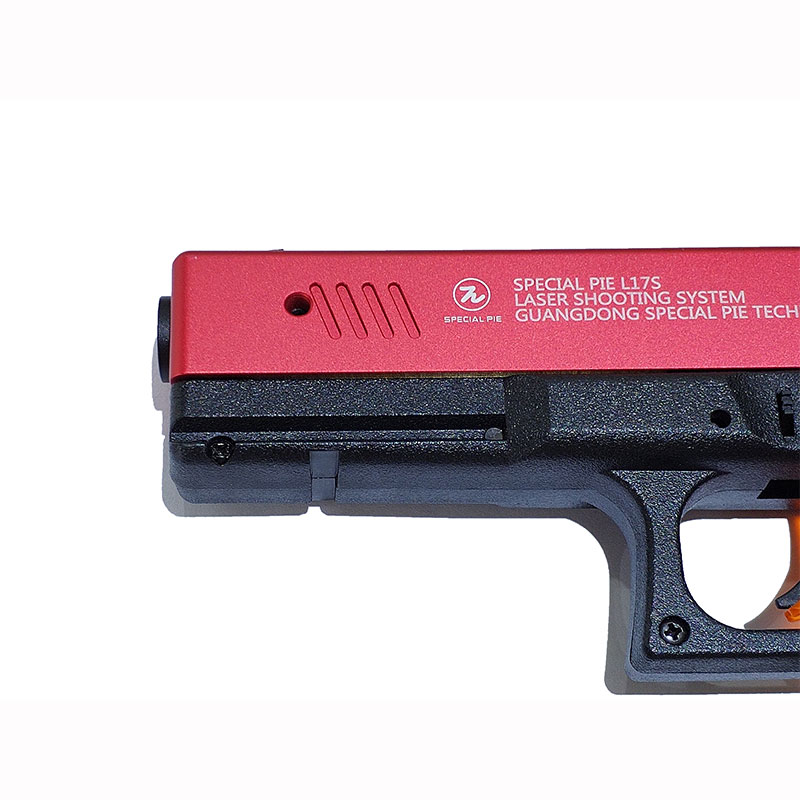

The L17S laser shooting simulator fully simulates the operation of a real pistol, including the same weight and size. It also simulates the trigger of a real gun and has a built-in electronic hammer, which enable a real shot simulation. Besides, applying L17S to shooting training can not only improve the shooter's skills under the premise of safety, but also can save the expenses and time of shooting training.

L17S Laser Simulator Gun(图1)

Product features

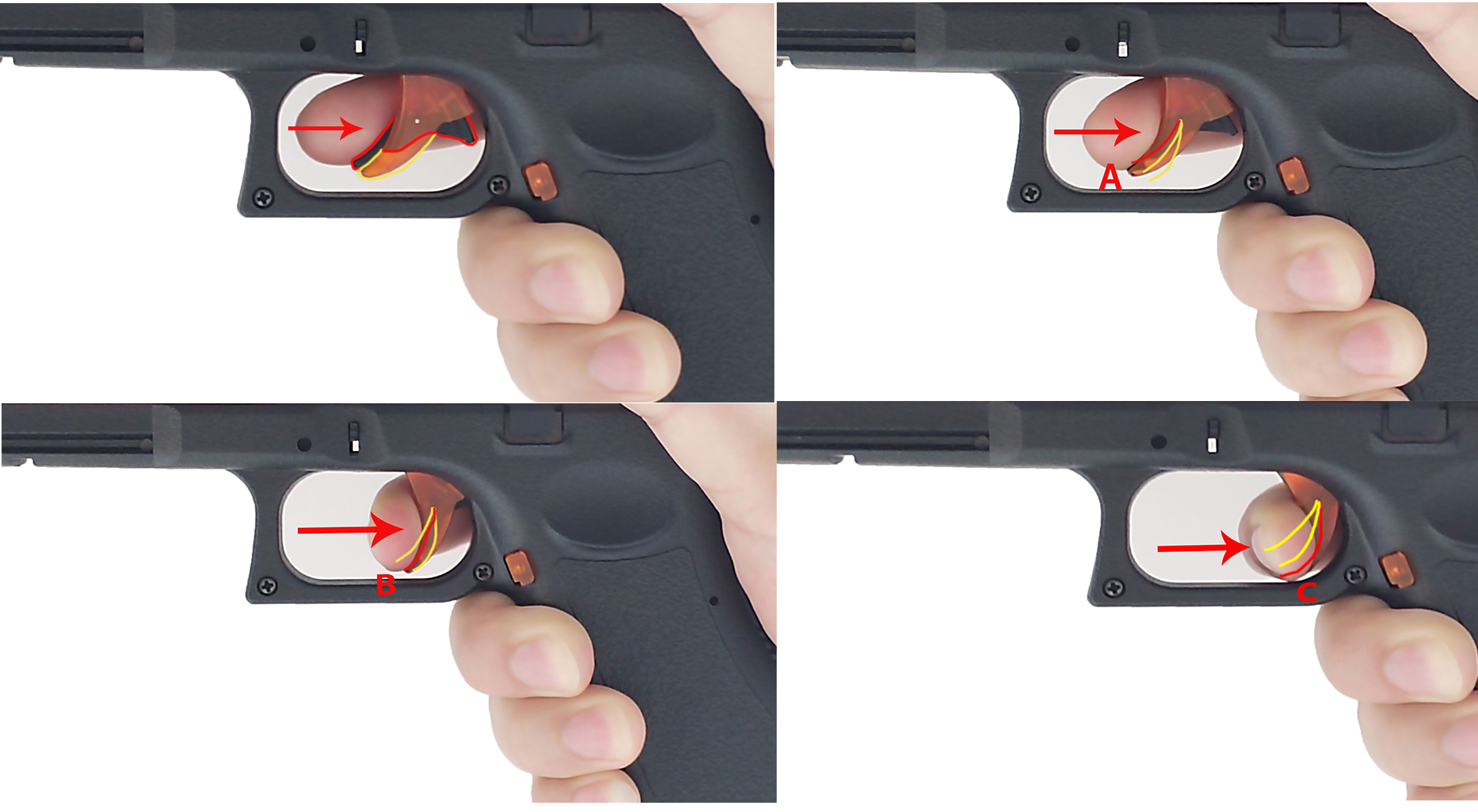

1. Simulated trigger wall Simulates the real trigger, enhance the control of trigger squeeze, training shooting accuracy and continuous shooting speed.

A.Pound force: 4.4-8.82LB

B. Trigger stroke:A —> B —> C, total 1.2CM)

C. Combination bit

L17S Laser Simulator Gun(图2)L17S Laser Simulator Gun(图3)

L17S Laser Simulator Gun(图4)L17S Laser Simulator Gun(图5)

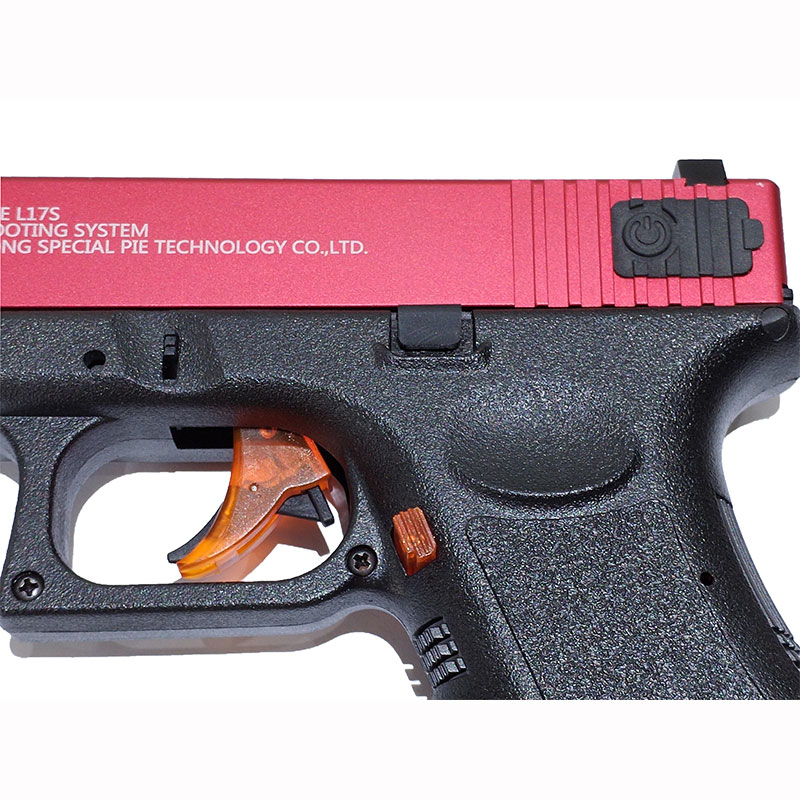

4. Safety small trigger simulation

L17S Laser Simulator Gun(图6)

2. Full-size training magazine

Detachable magazine: It can be used for magazine reload training, simulating the size of the real magazine, and fitting in universal magazine pouch.

A. Safety identification color.

B. it is not only the magazine for L17S, but also is used for real gun G17 training

C. Use anti-fall and anti-drop materials, stronger and more durable.

D. Optional electronic cigarette lighter function.

L17S Laser Simulator Gun(图7)

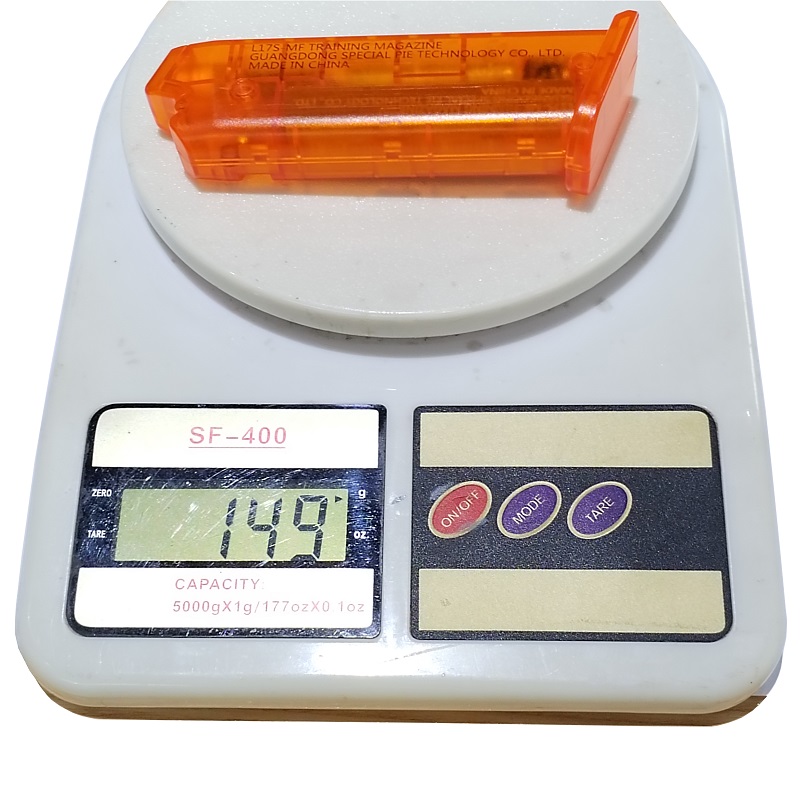

3. Same weight as real gun

Both the body and the magazine are designed with counter weights.

L17S Laser Simulator Gun(图8)


    4. Simulation of Laser Firing and Scattering of Projectiles

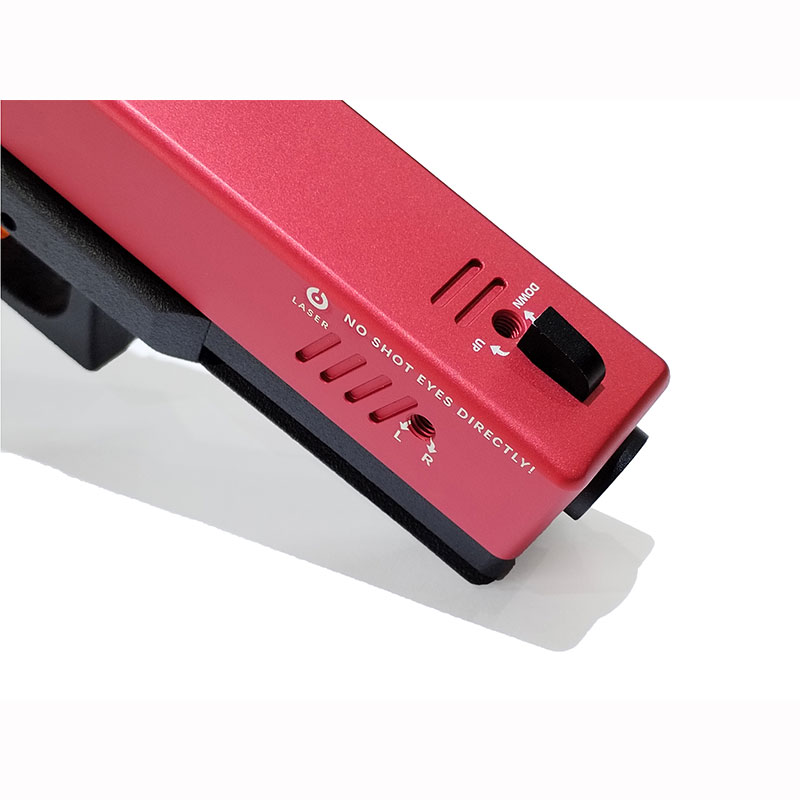

 A. Adjustable laser spot

L17S Laser Simulator Gun(图9)

B. Hammer PercussionIn order to simulate the real impact, a built-in hammer is used to trigger the laser.



5. Energy-saving Design

   A. The product will automatically enter the dormant state after standing for a period of time, and press the power button again when you need to use it

   B. The simulator integrates a type C charging port, which is convenient and quick to charge.

L17S Laser Simulator Gun(图10)


6. Compatible Products

J10C Laser Sensing Target

Laser Shooter

L17S Laser Simulator Gun(图11)

L17S Laser Simulator Gun(图12)

AKP1 Intelligent Target System

F22 Projection Laser Shooting Training

L17S Laser Simulator Gun(图13)

L17S Laser Simulator Gun(图14)


L17S Laser Shooting Simulator Gun

Size

Length

Overall 20.43CM

Height

Whole to top 12.76CM, with magazine 13.69CM

Width

3.23CM

Trigger specification

Trigger running distance

1.2CM

Pound Force

4.4-8.82LB

Total running distance

0.95CM

Material

Slide

Aluminum alloy

Weight(empty)

520g

Weight(with magazine)

680g

Surface treatment

Metal anodic oxidation

Main materials

Aluminum alloy and nylon

Laser specifications

Laser Type

Red adjustable aiming point

Laser Power

1mW

Battery

Type

Lithium battery 240mAh

Charge and discharge times

≥900 Times

Charging time

1 Hours

The last time

10000 shots (after fully charged)

Charging voltage

DC5V,2A

Magazine (cigarette lighter) Battery (optional, additional charge required)

Type

Lithium battery 180mAh

Cycle life

≥900 Times

Charging time

0.5 Hours

The last time

≥100 Hours

Charging voltage

DC5V,1A
