F-35 Portable Interactive Whiteboard

Works on almost any surface and transforms them into an interactive whiteboard
Small volume, extremely easy to carry and install
The size can be customized to adapt to any projector
High precision and usability
Multi-writing (Max 64 persons can write at the same time).

Contact us

Shirley Xie
E-mail：market@special314.com
Whatsapp：0086-13424425927
Skype：shirelylovelife

Facebook

YouTube

Wechat

Portable Interactive Whiteboard 3.0
As the third generation of portable interactive whiteboard which integrates complete market's requirements of this product. It's smaller and more beautiful with brand new appearance design. As well as it breaks up the traditional installation method. Can be stick onto projector with gum in the bottom of the base. With automatic calibration function, it'll be more convenient to operate it.

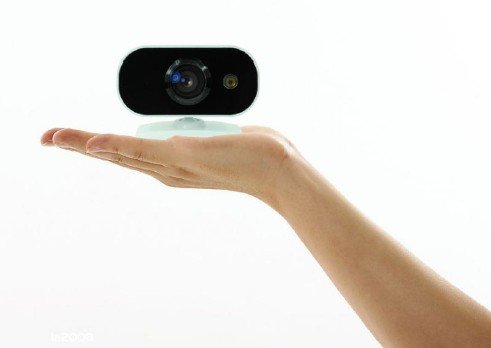

Smaller body, Powerful Interaction

Black and white colors for choices; Plastic shell, after highlighting process, it's more cute and exquisite; Can work with any projectors, no matter what brand, no matter what configuration, it can work perfectly to realize interactive function.

Magic Velcro, Newer Installation Way

Use 3M Velcro backing to fix the base directly on projector or desk, as long as the surface is flat, it also could be lifted.

Flexible Fixing Base, Easy to Focus

Rotate the camera, you can get horizontal 360° and vertical 120° setting range.

No Need Laser Switch Anymore

After setting the angle of signal receiver, calibration program will close laser switch automatically, so there's no need to operate it manually.

Added Flash Memory Chip

Firstly, response speed is getting extreme fast.

Besides, the previous calibration data can be stored, even if you changed the connected PC, you don't have to calibrate again.

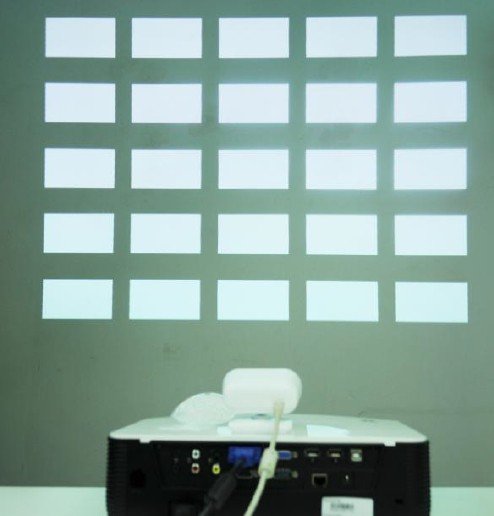

Auto-calibration, Flash Across

The original short throw portable IWB has to calibrate many points, it takes a long time. Now we have auto-calibration function, it can be done by 2 seconds, which endows customers a more convenient user experience.

Anti-light Interference, More Stable Performance

Strong anti-light interference function, block the light from the same spectrum automatically, improved the products stability to a great extent.

Bundling with New Pen, to be No. 1

1． The technology principle
A. The principle of photoelectric positioning technology is adopted, which can be used together with normal projector to transfer any projector surface into interactive whiteboard.

B. The interactive module is equivalent to the infrared high-speed tracker, and the electronic pen or pointer emits 850nm infrared light. The interactive module is responsible for receiving the signals emitted by the electronic pen and pointer in the projection range.

C. Infrared filter helps portable whiteboard filter other stray light and only receives 850nm infrared light, which makes positioning more accurate and writing faster.

D. Camera Touch/Interactive Projector Server: the Server is the communication tool between the portable whiteboard and the computer. Without the Server, the Interactive module cannot be identified by the computer/Projector.

E. E-Note: multi-point writing program, can be in any operating system to achieve multi-person writing function (only Windows XP/ Windows 7/ Windows 8/ Windows 10/ Windows 11 system).

F. System compatibility: Windows XP/ Windows 7/ Windows 8/ Windows 10/ Windows 11. Linux (some version of Ubuntu, only Server support, e-note does not support), Android system (e-note writing software does not support). Linux and Android system need secondary development.

G. Positioning function: click 4 (25) red cross to enable the interactive module to accurately catch the running track of the electronic pen and pointer.(there is no need for the user to reposition , because it has been set before delivery;Unless the customer finds the difference between the click red cross of the electronic pen and the cursor is more than 1-2cm, it needs to be repositioned.

2.Packing List：E-pen，USB Cable，Software，User Manual

3.Application

4. Suitable for any projector

Long Throw

Signal Receiver
Movement Detection	CMOS Infrared Technology
Active Area (max projection size)	150 inch diagonal
Active Area (horizontal angle)	33 +/- 2 degrees
Active Area (vertical angle)	0-30 degrees
Calibration Technology	Photoelectric Positioning
Active Distance (from projection screen)	1.5-5m
Connectivity Interface	1 x USB Cable (connection distance up to 24 m)
Power Requirement	4.5 ¨C 9 W (from USB port)
Power Consumption	< 1.5 W
Net Weight	81g
Extendable Pointer
Movement Detection Technology	LED Light
Power Requirement	3 V CR12 3A x 2
Trigger methods of pointer	Button
Pen Body Weight	85g (with battery)
Pointer Extendable Length	69cm (length)，Flexible
Net Weight	61g
E-Pen
Movement Detection Technology	LED Light
Power	Built-in Lithium Battery, Rechargeable
Pen Body Dimension	17.5cm (length); 1.0-1.7cm (diameter)
Net Weight	25g
Material	Plastic
System Requirements
OS Required	Microsoft Windows XP , Win7, Win8, Linux OS
Processor Type	Intel Pentium or above
RAM Size	128 MB
Min Hard Drive Space	30 MB
Detecting Size
Projection Size	Distance between Receiver and Projection Surface
56 inch	1600mm
68 inch	2100mm
70 inch	2300mm
75 inch	2500mm
85 inch	2800mm
92 inch	3200mm

Short throw

Signal Receiver
Movement Detection	CMOS Infrared Technology
Active Area (max projection size)	150 inch diagonal
Active Area (horizontal angle)	33 +/- 2 degrees
Active Area (vertical angle)	0-30 degrees
Calibration Technology	Photoelectric Positioning
Active Distance (from projection screen)	0.2-3m
Connectivity Interface	1 x USB Cable (connection distance up to 24 m)
Power Requirement	4.5 ¨C 9 W (from USB port)
Power Consumption	< 1.5 W
Net Weight	81g
Extendable Pointer
Movement Detection Technology	LED Light
Power Requirement	3 V CR12 3A x 2
Trigger methods of pointer	Button
Pen Body Weight	85g (with battery)
Pointer Extendable Length	58cm (length)
Net Weight	61g
E-Pen
Movement Detection Technology	LED Light
Power	Built-in Lithium Battery, Rechargeable
Pen Body Dimension	17.5cm (length); 1.0-1.7cm (diameter)
Net Weight	25g
System Requirements
OS Required	Microsoft Windows XP , Win7, Win8, Linux OS
Processor Type	Intel Pentium or above
RAM Size	128 MB
Min Hard Drive Space	30 MB
Detecting Size
Projection Size	Distance between Receiver and Projection Surface
70 inch	360mm
80 inch	400mm
85 inch	450mm
95inch	500mm
